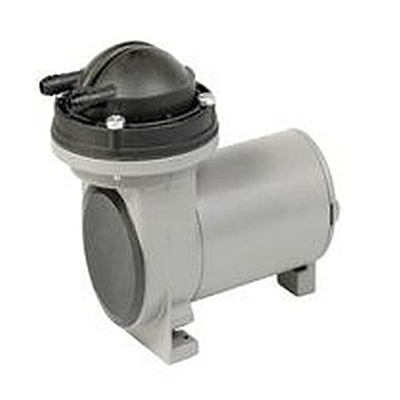

007CDC19/24

The 007CDC19 Thomas oil-less diaphragm compressor / vacuum pump is a compact and reliable solution for applications requiring clean, maintenance-friendly performance in a 12V DC format. Built with a permanent magnet motor, this Thomas vacuum pump is suitable for OEM equipment, portable systems, laboratory devices, medical equipment, and general industrial applications where oil-free operation is important.

This unit delivers dependable pressure and vacuum performance in a small footprint, making it ideal for systems where space is limited but consistent output is required. Its oil-less diaphragm design helps reduce maintenance while supporting cleaner air handling compared to lubricated pump technologies.

• Part Number: 007CDC19
• Brand: Thomas
• Type: Oil-less diaphragm compressor / vacuum pump
• Voltage: 12V DC
• Flow Rate: 0.65 CFM / 18 LPM
• Max Pressure: 15 PSIG / 1 bar
• Max Vacuum: 23 in HgV / -780 mbar
• Length: 6.17 in / 157 mm
• Width: 3.35 in / 85 mm
• Height: 5.12 in / 130 mm
• Net Weight: 2.9 lb / 1.3 kg

CompreVac supplies quality Thomas vacuum pumps and compressors for a wide range of commercial and industrial requirements. The 007CDC19 is a practical choice where compact size, oil-less performance, and dependable 12V DC operation are required.
